Description

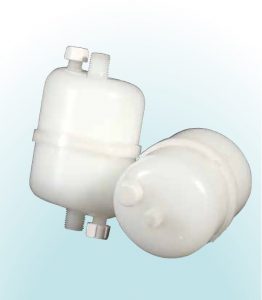

The Capsule Clean filters are made entirely of polypropylene and designed to filter liquid process chemicals at flow rate of less than 10 liters per minute. The disposable filter which is fully encapsulated in a compact and easy-to-handle housing shell is cost effective for low-volume filtration. All the products are manufactured, tested, and packaged in a clean room to ensure the
cleanliness.
Features
- Sealing method: thermal welding, eliminating
adhesive extractable - Manufactured in cleanroom
- Vent at highest location
- Drain at lowest location
- O-ringless design
Operating Conditions
Maximum temperature: 80°C (176°F)
Maximum differential:
3.4kg/cm2 (50 psid)@20°C(68°F)
Applications of Product
- TFT-LCD Color Filter :Photo resists, coatings
- Filtration of solvents
- Sterile tank venting
- Small volume point-of-use filtration
Spesification
Micron Rating (Absolute Rating 99.9%):
0.2, 0.45, 0.65, 1.0, 1.5, 5.0, 10, 20, 30, 40um
Material of Construction:
Medium: Melt-Blown PP micro filber
Support, shell, drainage, core and caps:
100% polypropylene
Length: 114mm (4.5inches), 173mm (6.8inches)
Outer Diameter: 72mm (2.83 inches)
Toxicity:
Complies with USP XXI Class VI for plastics
Non-toxic per WI-38 Human Cell Cytotoxicity Test
All materials meet FDA regulations for food contact
Performance
Flow Rate VS Pressure Drop

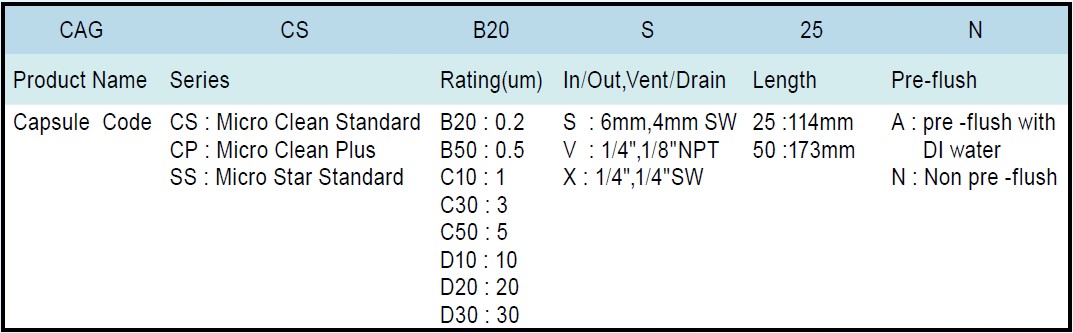

Code Principle
