Description
The FLOTROL electronic turbine meters area manufactures with a fiber reinforced polymer with wide range of connectors. They offer a heavy duty performance with a ± 5 % accuracy for a wide range of flows to cover residential and small commercial applications.
Meters are to be installed in a horizontal or a vertical position with the flow going up. Make sure to eliminate all air in piping for proper performance
Features
- Electronic meters using K factor
- Small light weight meters
- Modular design with plastic housing and different connectors
- Simplified design with ceramic turbine pivots and robust design
Benefits
- Easy to program on any controller that use “K” factors for meters. To be used on single or multiple units systems
- Safe for in line piping instalation when proper piping support guidelines are followed
- Easy piping and high flexibility with an attractive low cost
- Long durability with reliable performance
Spesification
Pressure Range | 20 - 125 psig / 1.4 - 8.6 barg / 0.14 - 0.86 MPa | |||||
Temperature Range | 34 - 109 F / 1 - 43 C | |||||
Description | K Factor | Program | Cv | Range | ||
Pulse / Gal | Pulse / Liter | US | Metric | GPM | ||

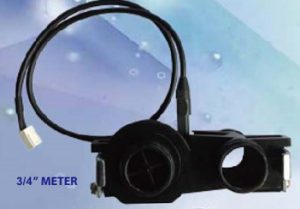

3/4" two ports plastic meter | 132 | 34.9 | F132 | F34.9 | 13.5 | 0.25 - 15 |
Plastic bypass with 1" couplers | 76.4 | 20.2 | F76.4 | F20.2 | 6.6 | 0.3 - 40 |
New 1" plastic meter with couplers | 71.2 | 18.8 | F71.2 | F18.8 | 24.7 | 0.3 - 40 |
1.5" plastic meter | 9 | 2.4 | F--9 | F-2.4 | 46 | 1.5 - 100 |
2" plastic meter | 9 | 2.4 | F--9 | F-2.4 | 49 | 2.0 - 150 |
Electronic Plastic Meter Option
100-00004-00 | 3/4" two ports meter F20/N25/T25 valve (18.5" lenght cable) |
100-00078-00 | 1" plastic meter with 1" NPTF connectors (99" lenght cable) |
100-00102-00 | 1" plastic meter with 1" NPTM connectors (99" lenght cable) |
100-00076-00 | 1" plastic meter with 1" BSPF connectors (99" lenght cable) |
100-00101-00 | 1" plastic meter with 1" BSPM connectors (99" lenght cable) |
100-00077-00 | 1" plastic meter with PVC sweat connectors (metric, 99" lenght cable) |
100-00197-00 | 1" plastic meter with PVC sweat connectors (US, 99" lenght cable) |
100-00208-00 | 1.5" plastic meter with PVC sweat connectors (metric, 300" lenght cable) |
100-00209-00 | 1.5" plastic meter with PVC sweat connectors (US, 300" lenght cable) |
100-00205-00 | 2" plastic meter with PVC sweat connectors (metric, 300" lenght cable) |
100-00206-00 | 2" plastic meter with PVC sweat connectors (US, 300" lenght cable) |
Cable options available 18.5", 35", 99" and 300" |
