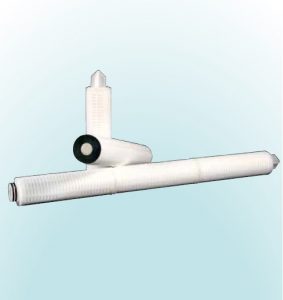

Micro Fluoro

Description

Micro Fluoro is a highly chemically-resistance cartridge owning to its use of PTFE membrane and polypropylene support.

Liquatec’s unique PTFE membrane construction
serves as a low-cost alternative to all fluoropolymer cartridge in less aggressive application and maintains broad chemical compatibility with low extractable levels and high particle retention rates.

Download Brochure

Features

  • Highly flow rate reduces processing time
  • Low extractable shortens start-up time
  • Excellent chemical compatibility for use in most
    application
  • Longer life reduces the cost of filtration
  • End cap and connector are sealed by thermal
    bond, free binder
  • Manufactured in clean room, highly clean cartridge

Operating Conditions

Maximum operating forward pressure drop:

  • 2.8 kg/cm² (40 psi) at 82°C(108°F)
  • 5.6 kg/cm² (80 psi) at 20°C(68°F)

Maximum operating temperature: 95°C(203°F)
Biological Safety:
Autoclaved for 10cycles of 30minutes at
126°C(259°F)

Applications of Product

  • Filtration of strong acid, base solution, solvent and DI-water under 80°C which are used in wet
    etching, solvents stripping, and cleaning manufacturing process of LCD factory
  • Filtration of CD-R and DVD-R factory
  • Thermal fine filtration of DI water system
  • Filtration of chemical delivery system for special photo electrochemical

Spesification

Micron Rating:

  • 0.05, 0.1, 0.2, 0.45, 1,3μm

Materials of Construction:

  • Filter Medium: hydrophobic PTFE membrane
  • Core, cage and endcaps: Polypropylene
  • Support and drainage: Polypropylene
  • Outer Dimension: 69mm
  • Inner Dimension: 28mm

Performance

Flow Rate VS Pressure Drop

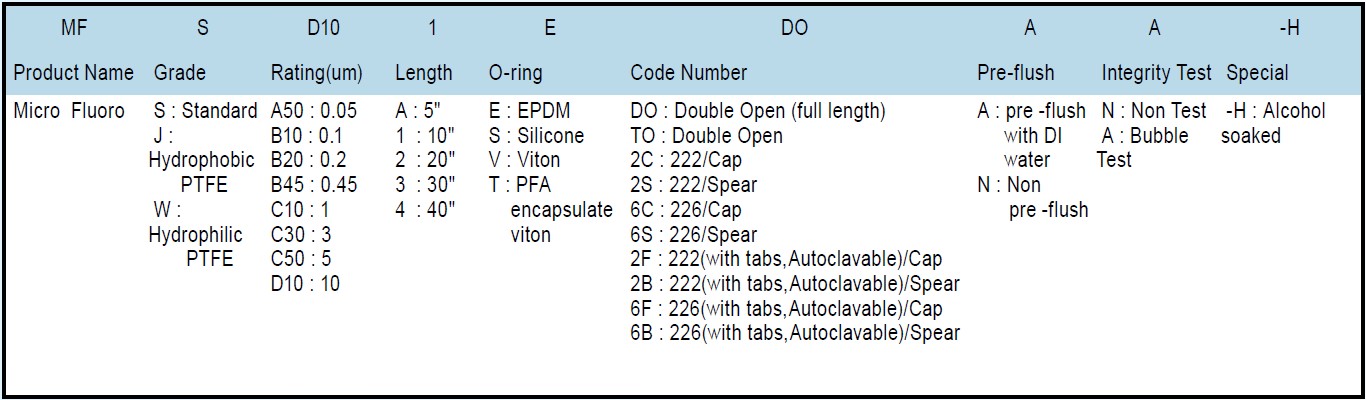

Code Principle
