Description

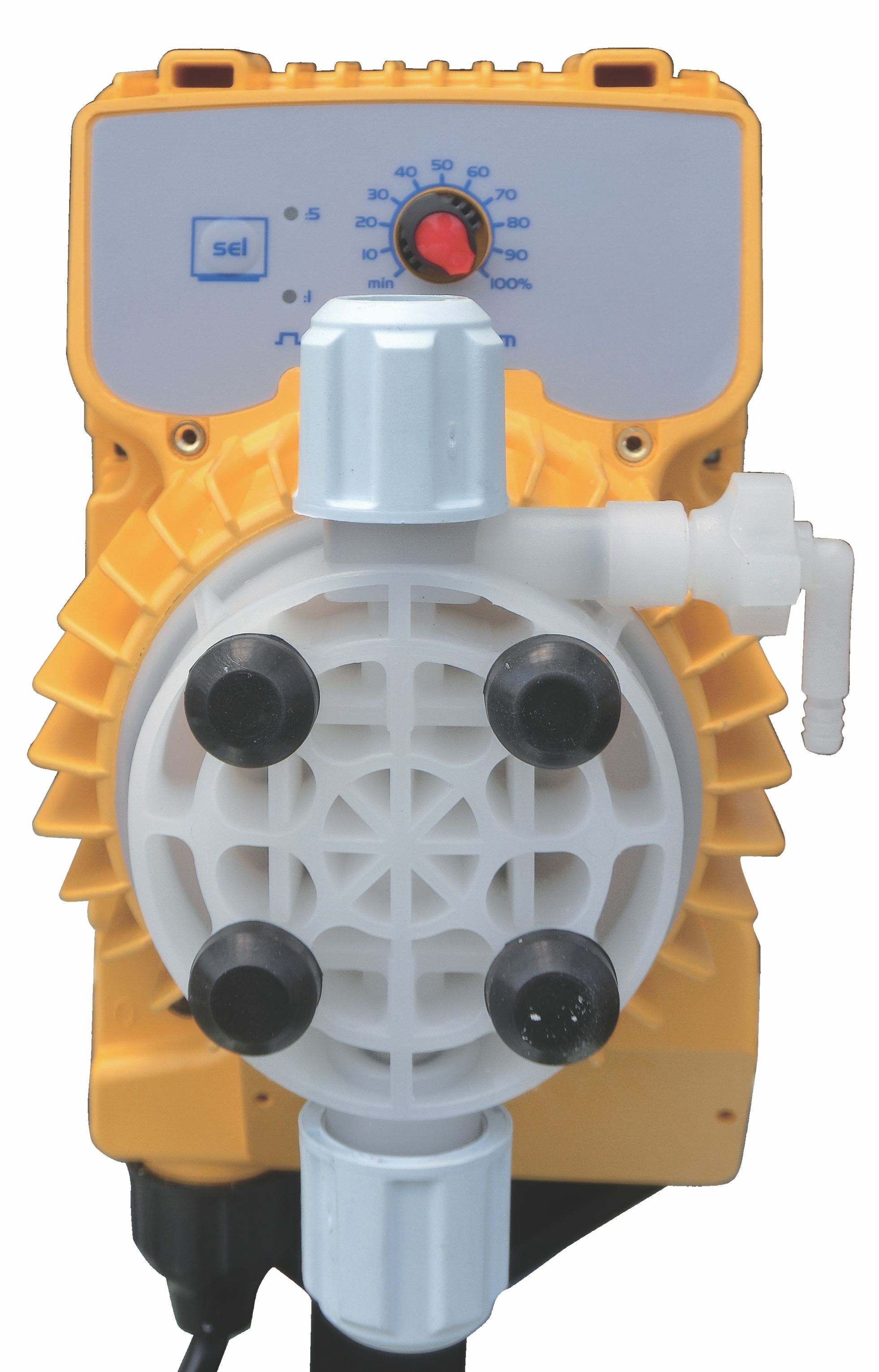

HKL-800 is a stable and easy operation electronic controlled dosing pump with two frequency adjustable and level control input
Download BrochureFeatures
Two manual adjusteable flow rate control dial on the front panel with power-on LED indicator and level control input
Measurement
Instalation Kit
Spesification
| Pressure (Barg) | 12 | 10 | 5 | 1 |
|---|---|---|---|---|
| Flowrate (LPH) | 7 | 10 | 15 | 18 |
| Stroke (ml / min) | 0.36 | 0.52 | 0.78 | 0.94 |
| Frequency (Stroke / min) | 300 | |||
| Connector | 1/2" - 3/8" threaded, PVC | |||
| Flowrate Adjust Range | 5-0-20%; 1-0-100% | |||
| Outer Shell | PP - IP65 | |||
| Valve Head | Pump Head : PVDF Ball Valve : Ceramic I/O Valve : PVDF Diaphragm : PTFE |
|||
| Power Supply | 100 - 240 V, 50-60 Hz 40 W | |||
| Installation | Wall mounted / Vertical | |||
| Net Weight | 4.4 kg | |||
