Micronix

//hantechwater.com/wp-content/uploads/2018/12/product-1.png

Description

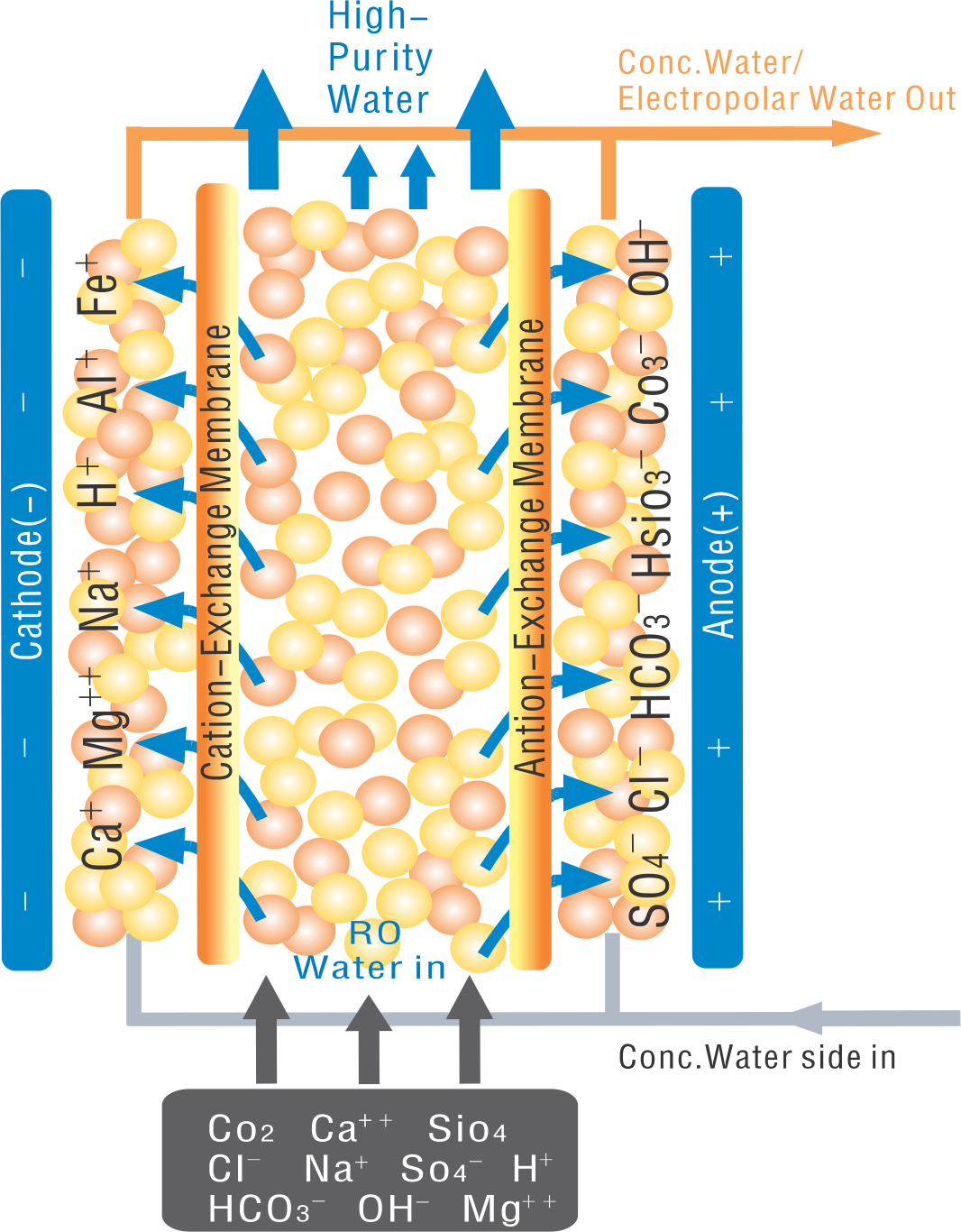

EDI is a revolutionary water treatment technology, it is skillfully combined electro osmosis technology with ion exchange technology, which does not need acid / base regeneration can produce sustainable high quality water. The emergence of EDI is a milestone in water treatment industry entering green environmental protection era. Using EDI to produce ultra pure water is e new trend !

EDI’s main function is to remove ions in RO water and filtered water. The high quality EDI stack can ensure stable permeate water quality and keep resitivity above 18 MW.cm.

Download Brochure

Inlet Water Spesification

Parameter	Spesification
Water Source	RO 2nnd Pass, Conductivity ≤ 20 uS/cm
Recommended Conductivity	2 - 10 uS/cm
Maximum Conductivity	≤ 25 uS/cm
pH	7.5 - 9
Temperature	5 - 38 Deg
Inlet Pressure	0.15 - 0.45 MPa (1.5 - 4.5 Bar)
Hardness	< 0.5 mg/L as CaCO3 (when recycling is at 90%)
Organic Content	< 0.5 mg/L, undetecable is prefered
Oxidant	Cl2 < 0.05 mg/L, O3 < 0.02 mg/L, undetecable is prefered
Metal	Total < 0.01 mg/L (Fe, Mn, Variable metals)
SiO2	< 0.5 mg/L
Total CO2	< 3 mg/L
Total Particle	< 1 um

EDI Spesification

Model	MX-500	MX-300	MX-200	MX-100	MX-50	MX-25
Dimension (L x H x W mm)	910 x 680 x 310	705 x 680 x 310	580 x 680 x 310	395 x 680 x 310	310 x 680 x 310	260 x 680 x 310
Concentrate Resin Electricity	Yes	Yes	Yes	Yes	Yes	Yes
Working Pressure	90 - 170	90 - 170	50 - 150	20 - 120	15 - 60	8 - 40
Working Current (A)	1 - 4	1 - 4	1 - 4	1 - 4	0.5 - 3	0.5 - 3
Design Current (A)	6	6	6	6	6	6
Product Flow (m3/h)	4 - 6	2.4 - 4.4	1.5 - 2.4	0.8 - 1.4	0.3 - 0.75	0.15-0.3
Max Product Flow (m3/h)	6.5	4.4	2.4	1.4	0.75	0.3
Recovery (%)	90 - 95	90 - 95	90 - 95	90 - 95	80 - 95	70 - 85
Product Resistivity (M Ω cm)	≥ 15	≥ 15	≥ 15	≥ 15	≥ 15	≥ 15
Inlet Pressure (MPa)	0.15 - 0.45	0.15 - 0.45	0.15 - 0.45	0.15 - 0.45	0.15 - 0.45	0.15 - 0.45
Max Pressure (MPa)	0.55	0.55	0.55	0.55	0.55	0.55
