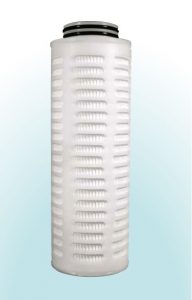

Ultra Fluoro


High porosity rate PTFE membrane makes Ultra Fluoro series filter cartridges for high flow rates and excellent retention performance. These filter cartridges utilize a PTFE membrane with 100% polypropylene support and porous outside/inside cage, thereby good chemicals compatibility. Filter cartridges are using the welding techniques and manufactured in cleaning room enable the smallest contaminant extraction and higher durability .

Download Brochure


  • Strengthening inner core make for good pressure
  • High flow rate : these filter can handle flow rates
    up to 100 lpm
  • The high porosity rate structure makes long service life
  • No extractable, ensure superior downstream
  • PTFE membrane offers excellent chemical
    resistance in aggressive chemical applications

Operating Conditions

Maximum operating forward pressure drop:

  • 0.85 MPa @20°C/120 psid @ 68°F
  • 0.34 MPa @85°C/50 psid@ 185°F

Maximum operating temperature:

Applications of Product

  • TFT-LCD: wet etching and stripping process
  • TN/STN: wet etching and stripping process
  • Electronic grade solvents
  • Magnetic media solvent


Micron Rating:

  • 0.05,0.1, 0.2, 0.45, 1,3,5,10μm

Materials of Construction:

  • Medium :High porosity rate PTFE membrane
  • Core, cage and endcaps: Polypropylene
  • Support and drainage: Polypropylene
  • Length:10, 20 inches
  • Outer Diameter: 83mm


Flow Rate VS Pressure Drop

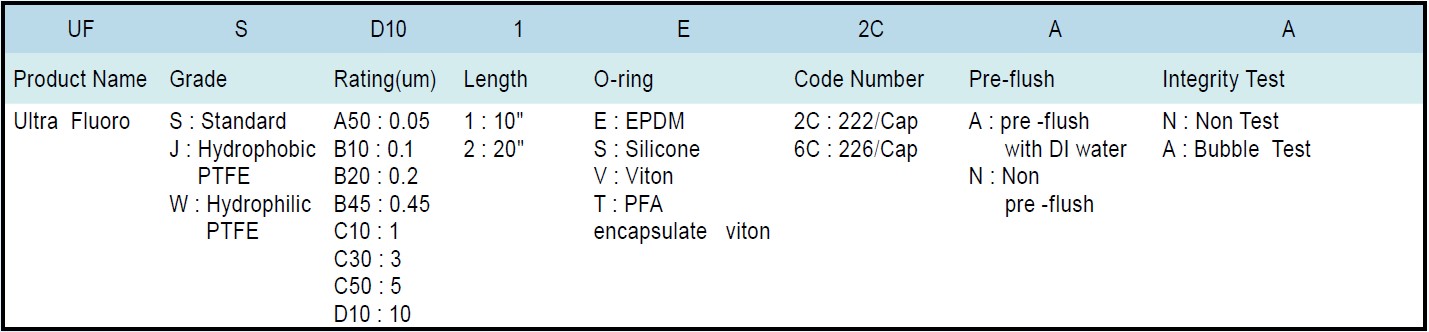

Code Principle
