4” & 8” FRP RO MEMBRANE HOUSING
4” End and Side Entry Series
- Connection Type : 4040 end entry 4040 side entry
- Pressure Rating : 150, 300, 450, 600, 800, 1000 psi
- Number of Elements : 1 – 5 cores
- Color : White as standard (can be customized color)
- Special configuration : As per request
Key Features
- Membrane housing is manufactured according to standard JC692-1998
- Designed pressure of membrane housing : 150, 300, 450, 600, 800, 1000 psi
- Operating temperature : 5 – 49 oC
Membrane housing leakage testing is applied with water pressure testing method, testing pressure is 1.5 x designed pressure
4” End Entry Instalation Drawing
4” Side Entry Instalation Drawing
Spesification
| Operating Measure | # of Element | L1L2 (mm) | S (mm) | P (mm) | Operating Measure | # of Element | L1L2 (mm) | S (mm) | P (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 300 psi | 1 | 1129/1235 | 610 | 1016 | 1000 psi | 1 | 1177/1277 | 610 | 1016 |
| 2 | 2145/2251 | 1350 | 2032 | 2 | 2193/2293 | 1350 | 2032 | ||
| 3 | 3162/3268 | 1960 | 3050 | 3 | 3210/3310 | 1960 | 3050 | ||
| 4 | 4178/4284 | 1580 x 2 | 4066 | 4 | 4226/4326 | 1580 x 2 | 4066 |
8” End and Side Entry Series
- Connection Type :
- 8040 end entry (threaded port)
- 8040 side entry (flat port)
- 8040 side entry
- Pressure Rating : 150, 300, 450, 600, 800, 1000 psi
- Number of Elements : 1 – 7 cores
- Color : White as standard (can be customized color)
- Special configuration : As per request
Key Features
- Membrane housing is manufactured according to standard JC692-1998
- Designed pressure of membrane housing : 150, 300, 450, 600, 800, 1000 psi
- Operating temperature : 5 – 49 oC
- Membrane housing leakage testing is applied with water pressure testing method, testing pressure is 1.5 x designed pressure

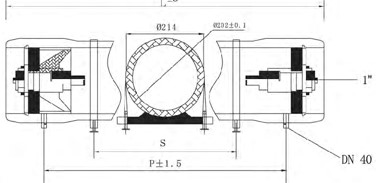

8” End Entry Instalation Drawing
8” Side Entry Instalation Drawing
Spesification
| Operating Measure | # of Element | L (mm) | S (mm) | P (mm) | Operating Measure | # of Element | L (mm) | S (mm) | P (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 300 psi | 1 | 1459 | 700 | 1139 | 1000 psi | 1 | 1524 | 700 | 1142 |
| 2 | 2475 | 1454 | 2032 | 2 | 2540 | 1454 | 2158 | ||
| 3 | 3491 | 2064 | 3050 | 3 | 3556 | 2064 | 3174 | ||
| 4 | 4510 | 1646 x 2 | 4190 | 4 | 4574 | 1646 x 2 | 4192 | ||
| 5 | 5526 | 2000 x 2 | 5206 | 5 | 5588 | 2000 x 2 | 5208 | ||
| 6 | 6542 | 2357 x 2 | 6222 | 6 | 6606 | 2357 x 2 | 6226 | ||
| 7 | 7558 | 3084 x 2 | 7238 | 7 | 7622 | 3084 x 2 | 7242 |
8” Side Entry has no size P
Lock Head Assembly Drawing
| 1 | Screw | 1 | Seal |
|---|---|---|---|
| 2 | Retaining Ring | 2 | O-Ring |
| 3 | Nuts | 3 | Adapter |
| 4 | Bearing Plate | 4 | Adapter Seal |
| 5 | Sealing Plate | 5 | Thrust Ring |
Scientific and Unique Design
The product is automatically manufactured by microcomputer with optimized compact technical standard and special formula technique leading by experienced technical support team. We are dedicated to make teh product perfect in smooth inner surface, inner components design and coating.
Product Quality
The product is constructed from excelent epoxy used by special condensate, more improved compact treatment and particular spinnng. We are devoted to product quality management and operation process.
Stainless Steel Membrane Vessel
Description
Are the most economical solution to your membrane housing needs. Stainless steel will not be effected by UV Rays or sunlight. Lighter, more durable than PVC, FRP housings – equivalent – inpressure rating and will not warp / crack / weep like fiber glass. Our tooling ensures accurate dimensions, precise tolerances and overall precise engineered uniform product.
Features
- Max operating pressure : 300 psi
- SS 304 housing with polishing treatment
- ABS end cap with black color
- O-ring : EPDM
Ordering Guide
| SPV | 01 | 4021 | N |
|---|---|---|---|
| SS Pressure Vessel | Housing 01 : Seamless | OD / Length 4021: 4" OD x 21" L 4040: 4" OD x 40" L 4080: 4" OD x 80" L | Tread Type N: NPT B: BSP |
Specification SS Membrane Vessel
| Model No | Size | Ports | Feed | Brine |
|---|---|---|---|---|
| SPV-01-4021N(B) | 4" x 21" | End | 1/2" | 1/2" |
| SPV-01-4040N(B) | 4" x 40" | End | 3/4" | 1/2" |
| SPV-01-4080N(B) | 4" x 80" | End | 3/4" | 1/2" |
| *) 8" SS Pressure vessel is also available | ||||
