OEC Capsule Filter

Description

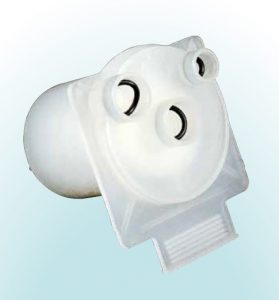

The OEC filter is designed for extremely small resist pump installations. It is specifically designed for small volume dispense systems which require the smallest footprint area. The OEC filter unit consists of a quick disconnect head manifold and a polypropylene capsule.
This configuration allows for safe, quick and easy filter change-outs. Three filter media types, PTFE, PES, PP are available to optimize your filtration selection.

Download Brochure

Features

  • Capsule style filter assembly
  • Minimized hold-up volume
  • One step quick filter replacement
  • Reduces chemical waste during filter startup and
    change-out

Operating Conditions

Maximum temperature: 80°C(176°F)
Maximum differential:
3.4kg/cm2 (50 psid)@20°C (68°F)

Applications of Product

  • TFT-LCD Color Filter :Photo resists, coatings
  • Filtration of solvents
  • Small volume point-of-use filtration

Spesification

Micron Rating (Absolute Rating 99.9%):
0.2, 0.45, 0.65, 1.0, 1.5, 5.0, 10, 20, 30, 40um

Material of Construction:

  • Medium: Melt-Blown PP micro filber
  • Support, shell, drainage, core and caps:
  • 100% polypropylene

Performance

Flow Rate VS Pressure Drop

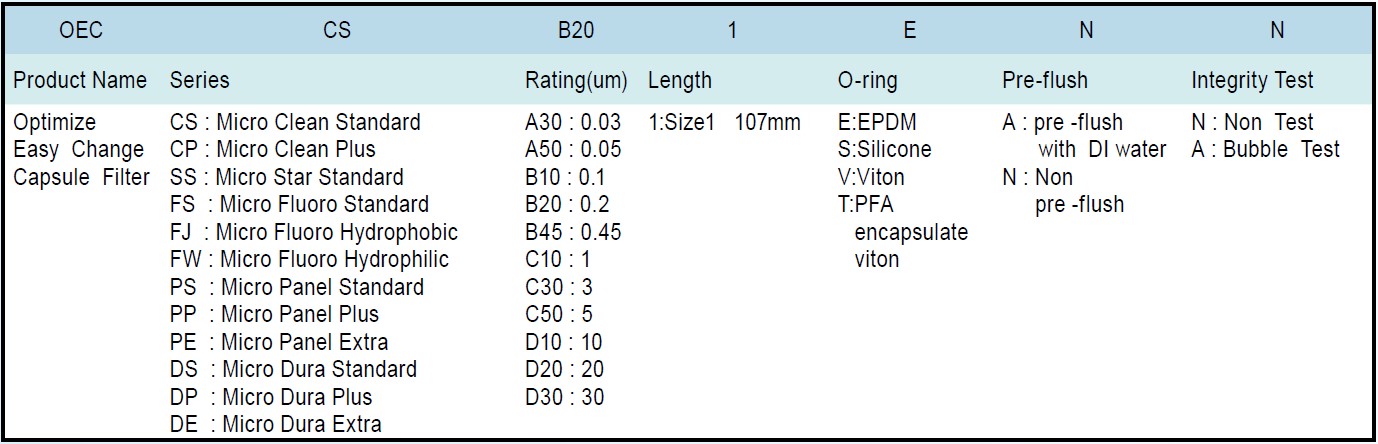

Code Principle
