Description

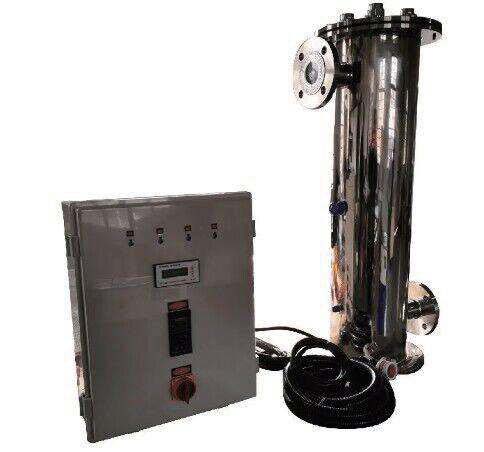

ProMax series is manufactured for commercial and
industrial applications. USA made lamp for long lifetime
and excellent efficiency
Features
- 4-log (99.99%) Reduction in bacteria, viruses and protozoan cysts
- UV Lamp rated life 10000 hours
- Electro-Polished SS304 reactor chamber (SS316 available on request)
- Installation: Vertical
Equipments
- Audible Alarm
- Lamp Operation Indicators
- USA made Lamp
- Control Panel
Operating Parameters
- Max. Operating Pressure: 125 psi (8.62 Bar)
- Ambient Water Temperature: 2 – 40 C (36 – 104 F)
- Iron < 0.3 ppm (0.3 mg/l)
- UV Transmittance > 75%

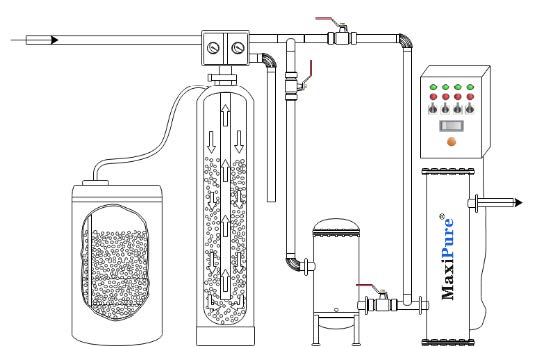

Typical Installation

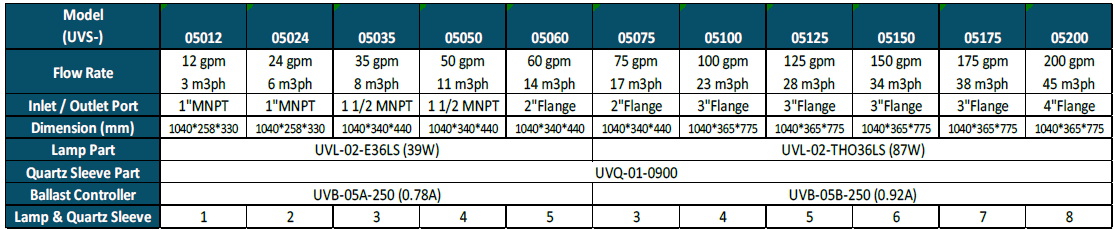

Specifications
