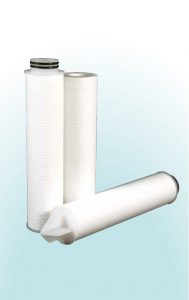

Thermal Bonding

Description

TB filter manufacturing utilizes the most advanced technology to produce a clean, rigid filter structure. The filter is constructed with the skin- core long bicomponent fibers, and the fibers are thermally bonded with high temperature. The high degree of fiber- to- fiber bonding provides a rigid structure that no need a core support and any possibility of media migration.

Download Brochure

Features

  • Product provides consistent filtration from start to finish
  • The filter is constructed using filament won’t release fiber caused liquid contamination
  • The rigid structure suit for highly viscous liquid
  • The porous outer layer and dense inner layer
    structure ensures high service life

Operating Conditions

Maximum forward differential pressure :
5.62kg/cm² (80 psi) at 24°C(75°F)

Maximum operating temperature :
80°C(175°F)

Applications of Product

Food & Beverage : Clarification
Coating : Clarification
Coater : Gel filtration
Ink : Clarification
Chemical Solution : Clarification.
Watertreatment : Pre RO, Cooling water.

Spesification

Micron Rating :
0.5, 1, 3, 5, 10, 20, 30, 40, 50, 75, 100, 150 μm ( Water )

Materials of Construction :

  • Filter Medium : PP/PE
  • Outer Diameter : 63~65mm
  • Inner Diameter : 30mm
  • Length : 250, 500, 750, 1000mm

Performance

Flow Rate VS Pressure Drop

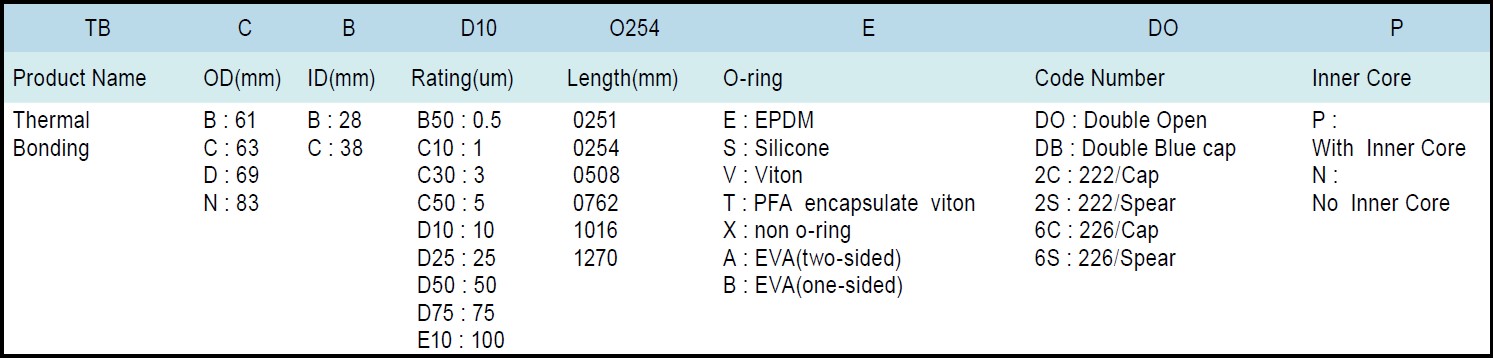

Code Principle
