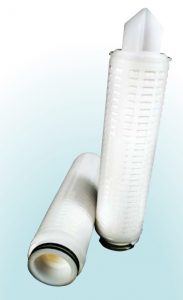

Micro Panel

Description

Micro Panel cartridges are constructed by Polyethersulfone membrane and polypropylene (support, core and end cap). Micro Panel's unique mirrored-anisotropic PES membrane has exceptionally high flow rates and long on-steam life, and provides consistent removal of both organic and inorganic particulates.

Download Brochure

Features

  • The highly porous asymmetric membrane that
    ensure lower pressure drop and extended service
    time.
  • Polypropylene supports provide clean and
    durable performance.
  • The filter element is manufacture in clean room.
  • Pre-flush 30 minutes with RO/DI water.
  • End caps and connectors are sealed by thermal
    bond, free binder.

Operating Conditions

Maximum operating forward pressure drop:

  • 2.81kg/cm² (40 psi) at 82°C(180°F)
  • 5.62kg/cm² (80 psi) at 24°C(75°F)

Maximum operating temperature: 95°C(203°F)
Biological Safety: Autoclaved for 10cycles of 30
minutes at 126°C(102°F)

Applications of Product

  • TFT-LCD: wet etching, strippi e r, cleaning
  • TN/STN: wet etching, stripping, developer, cleaning
  • Color Filter: wet etching, stripping, developer, cleaning
  • Beverage/Wine clarification
  • Chemical processing
  • Solvent filtration

Spesification

Micron Rating:

  • 0.03, 0.1, 0.2, 0.45, 1.2μm(Water)
  • 0.01, 0.02, 0.005μm (Air)

Materials of Construction:

  • Core, cage and endcaps: Polyethersulfone
  • Support and drainage: Polypropylene
  • Outer Diameter: 69mm(2.7inches)
  • Inner Diameter: 28mm(1.1inches)

Performance

Flow Rate VS Pressure Drop

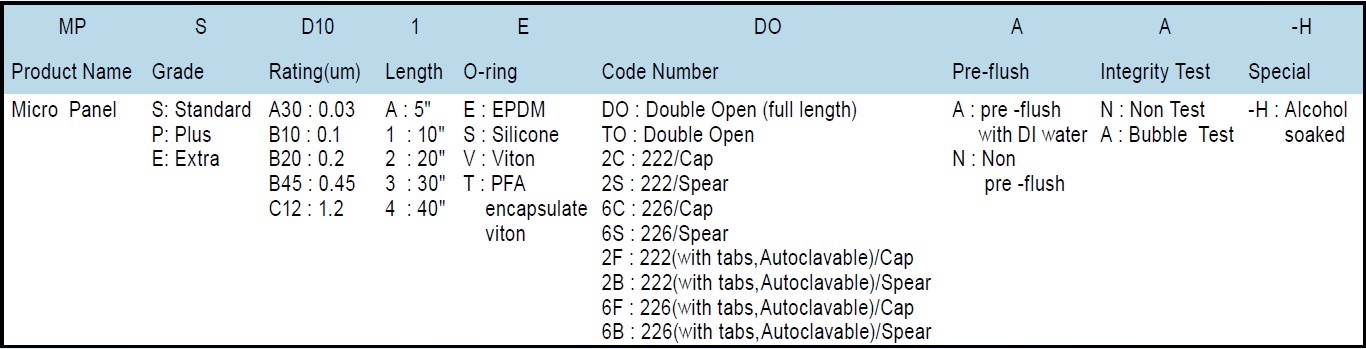

Code Principle
