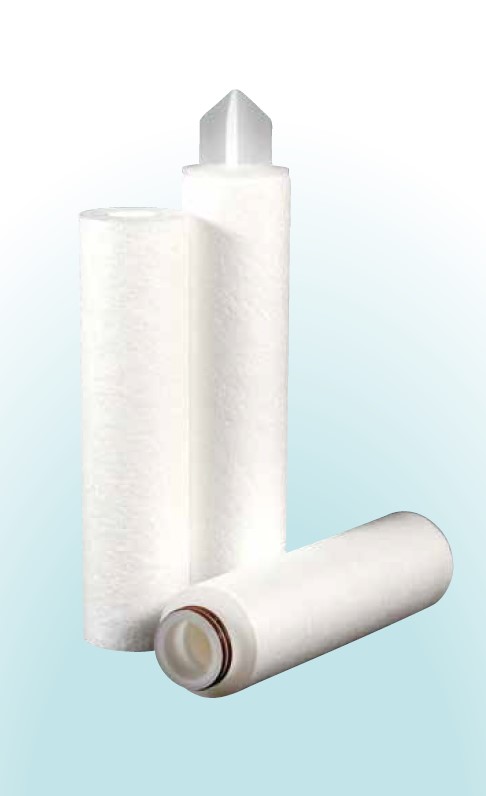

Absolute Gard

Liquatec develops the Melt-Blown technology
to meet the market requirements for a pure
polypropylene depth filter with exceptional dirtyholding capability and performance. The structure
of surface is an exceptional value for industry application where long life, low pressure drop and
high efficiency required.

• Absolute ratings from 1 to 100μm
• Continuously gradient pore structure increase
  capacity of dust
• Surface fiber fortified to prevent fiber releasing
  100% PP for compatibility for a wide range of
  process fluid
• Formed by thermal bond without use any binder
  and adhesive
• High strength and pressure resistance
  Certificated by FDA CFR Title 21

Maximum operation pressure drop:

• 1.2 kg/cm²(17 psi) at 80°C(176°F)
• 2.1 kg/cm²(30 psi) at 60°C(140°F)
• 4.2 kg/cm²(59 psi) at 20°C(68°F)

Recommended replaceable pressure drop: 2.1 kg/cm²(30psi)

Maximum operation temperature: 80°C(176°F)

• Food & Beverage
• Electroplating, etching and image development processes in PCB industry
• Filtration of electroplating fluid in conventional electroplating industry
• Pre-filter of DI & RO water filtration system for industry
• Filtration of medium & low viscosity fluids of chemical

Micron Rating (Absolute Rating 99.9%):
1, 3, 5, 10, 25, 50, 75, 100 μm

Material of Construction:
100% Polypropylene Melt-Blown Micro-Denier fiber

Length:
9.87inches, 10inches, 20inches, 30inches, 40inches, 50inches

Outer Diameter:
63mm(2.48inches), 69mm(2.72inches), 83mm(3.27inches)

Inner Diameter:
28mm(1.1inches), 38mm(1.50inches)

Flow Rate VS Pressure Drop
